The Modular System Free Standing Crane System is a perfect solution for situations where overhead crane installation is otherwise difficult or impractical. Because the runways are usually installed above the floor without footers, Modular System Cranes work well in pre-cast concrete buildings. Since all connections are bolted rather than welded, the Modular System is easily dismantled and moved to another location, an advantage when used in a leased building. The Modular System free standing cranes low headroom design maximizes lift when headroom is at a premium.
Cells can easily be added or removed
Up to 40 feet
Length up to 120 feet
Up to 10 tons
Great for buildings not originally
designed for cranes and with low headroom
Can easily be relocated
Hand-held radio control
Steel freestanding structure
Inverter controlled hoist trolley and bridge with end trucks
Maintenance manual
Runway electrification
Instructions for bridge construction and crane assembly

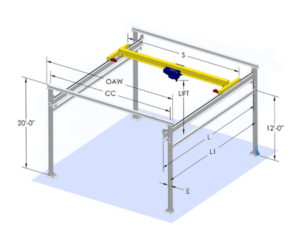

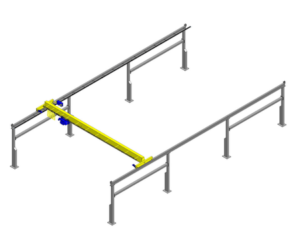

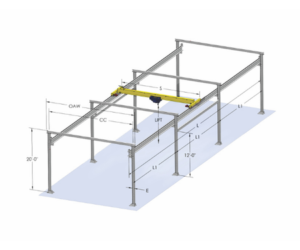

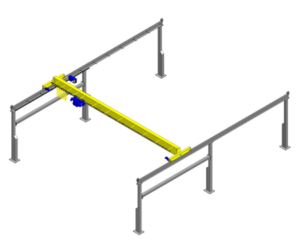

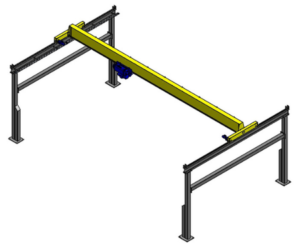

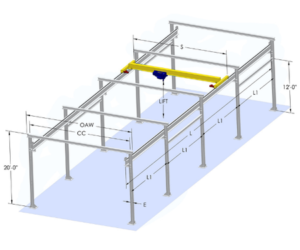

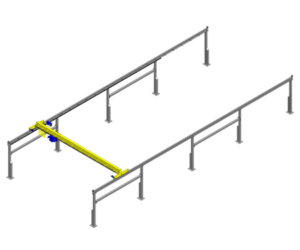

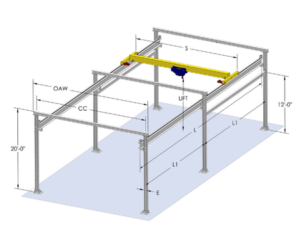

Modular Modular System Free Standing Bridge Crane Cells are available in runway lengths of 20, 25 and 30 feet. Multiple cells can be combined for long runways; existing systems can be retrofitted with additional cells.
